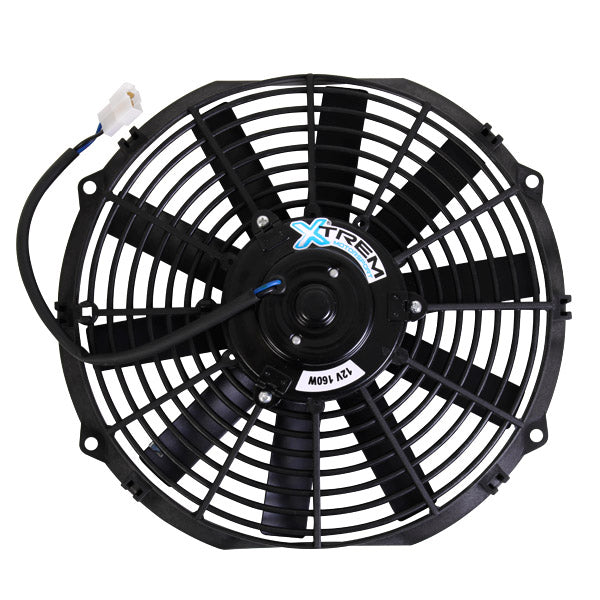

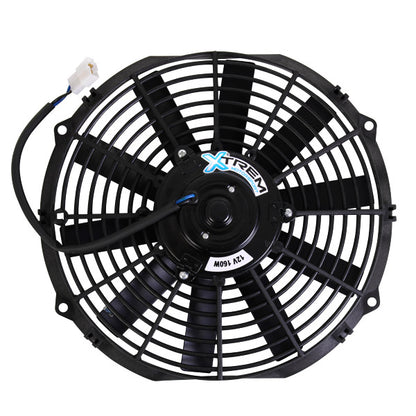

Ultra-slim universal fan 320 mm – 1650 m³/h – Xtem Motorsport

Optimize your engine water cooling circuit with this 320 mm universal slim fan, capable of moving up to 1650 m³ of air per hour. Thanks to its slim design, it fits easily even in areas where space is limited, while providing a powerful and sustained airflow to improve heat dissipation from the engine radiator.

This fan is particularly suitable for:

Maintaining stable water temperatures on high-performance engines

Preventing overheating during intensive off-road driving

Reinforcing the cooling system in tuned configurations

Serving as a high-performance primary or auxiliary fan for large radiators

🔥 Key features

Slim design – ideal when space is tight

Large diameter: 320 mm

Airflow up to 1650 m³/h – high airflow for intensive cooling

Universal fitment – easy to mount on most water radiators

Robust construction – designed for mechanical & off-road use

🔁 Reversible operation – Puller or pusher

This slim fan can be used in puller or pusher mode, depending on your installation and the desired direction of airflow.

To switch from one mode to the other, you simply need to reverse the wire polarity, without any loss of performance.

Puller mode:
Blue wire = + / Black wire = –

Pusher mode:
Blue wire = – / Black wire = +

This allows for highly flexible installation, whether the fan is positioned in front of or behind the radiator.

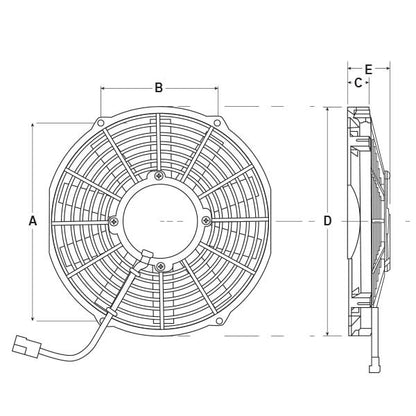

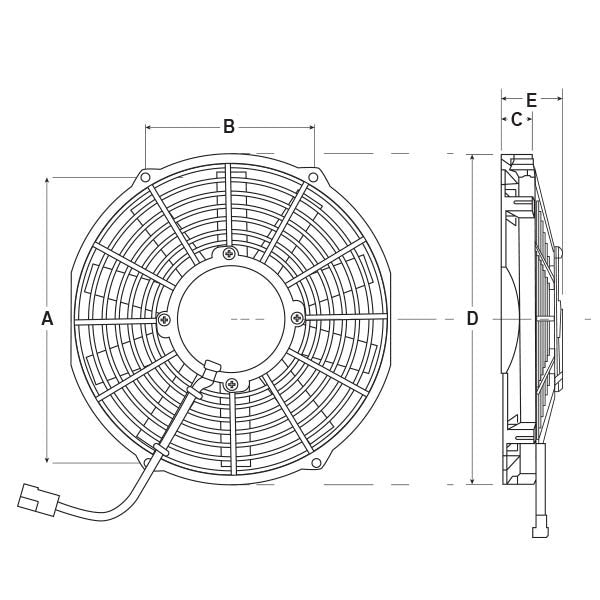

⚙️ Specifications

Overall diameter (D): 320 mm

Blade diameter: 280 mm

Housing thickness (C): 30 mm

Max thickness (E): 65 mm

Mounting hole spacing (A): 275 mm

Mounting hole spacing (B): 160 mm

Flow rate: 1650 m³/h

Power: 160 W

Power supply: 12 V
