Universal ultra-slim fan 285 mm – 1360 m³/h – Xtem Motorsport

Optimize the cooling of your thermal systems even in compact configurations thanks to this 285 mm ultra-slim universal fan. With an airflow of 1360 m³ per hour, it offers an effective solution for boosting ventilation through an engine radiator or an intercooler even when space is limited.

Its ultra-slim design allows it to be easily integrated into tight or cluttered engine bay areas, making it ideal for modified engine setups, custom installations, or off-road vehicles requiring optimized thermal management.

🔥 Highlights

Ultra-slim design – perfectly suited for tight spaces

285 mm diameter

Airflow up to 1360 m³/h – to effectively improve airflow in cooling circuits

Universal fitment – mounts on radiator, intercooler, etc.

Robust material designed for mechanical & off-road use

🔁 Reversible operation – Puller or pusher

This ultra-slim fan can be used in puller mode or pusher mode, depending on your setup and the desired airflow direction.

To switch from one mode to the other, simply reverse the wire polarity, with no loss of performance.

Puller mode:
Blue wire = + / Black wire = –

Pusher mode:
Blue wire = – / Black wire = +

This allows for very flexible installation, whether the fan is positioned in front of or behind the radiator.

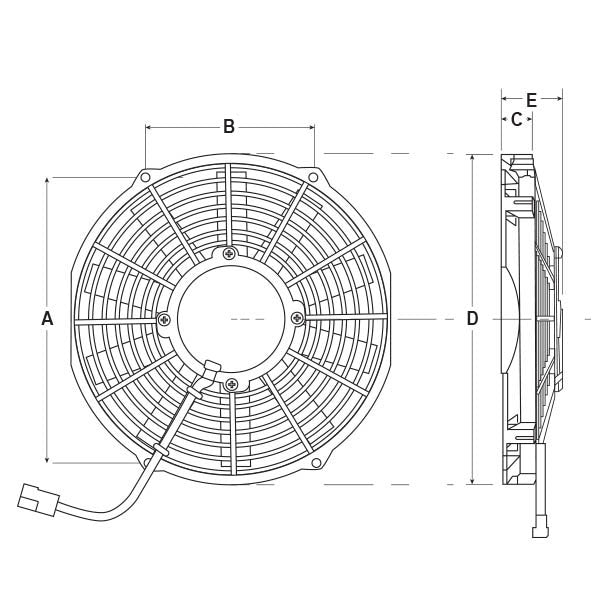

⚙️ Specifications

Overall diameter (D): 285 mm

Fan blade diameter: 255 mm

Fan housing thickness (C): 30 mm

Max thickness (E): 60 mm

Mounting hole centers (A): 260 mm

Mounting hole centers (B): 135 mm

Airflow: 1360 m³/h

Power: 160 W

Power supply: 12 V
