250 mm ultra-slim universal fan – 1200 m³/h – Xtem Motorsport

Optimize the cooling of your thermal systems even in compact configurations thanks to this 250 mm slim universal fan. With an airflow of 1200 m³ per hour, it offers an effective solution for boosting ventilation through an engine radiator, intercooler, oil cooler, or any other heat exchanger, even when space is limited.

Its slim design allows it to be easily integrated into tight or crowded engine bay areas, making it ideal for modified engine setups, custom installations, or off-road vehicles requiring optimized thermal management.

🔥 Highlights

Slim design – perfectly suited for restricted spaces

250 mm diameter

Airflow up to 1200 m³/h – to effectively improve airflow in cooling circuits

Universal fit – mounts to radiators, intercoolers, oil coolers, etc.

Robust equipment designed for mechanical & off-road use

🔁 Reversible operation – Puller or pusher

This slim fan can be used in puller or pusher mode, depending on your installation and the desired direction of airflow.

To switch from one mode to the other, you simply need to reverse the wire polarity, without any loss of performance.

Puller mode:
Blue wire = + / Black wire = –

Pusher mode:
Blue wire = – / Black wire = +

This allows for very flexible installation, whether the fan is positioned in front of or behind the radiator.

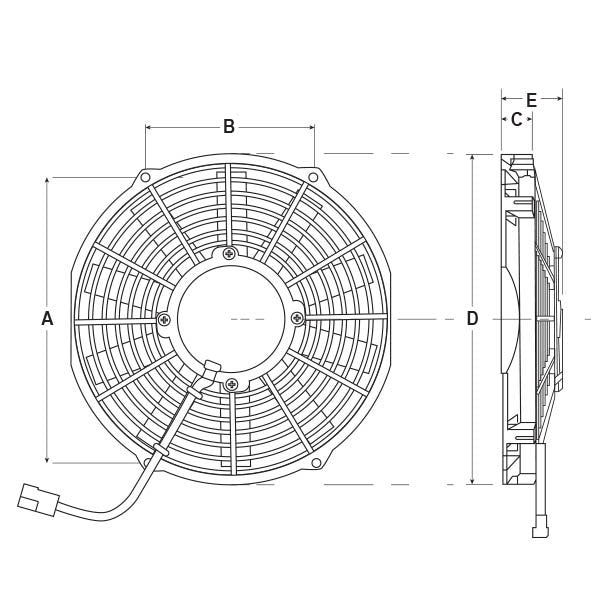

⚙️ Specifications

Overall diameter (D): 250 mm

Blade diameter: 220 mm

Blade housing thickness (C): 30 mm

Max thickness (E): 62 mm

Fixing centers (A): 205 mm

Fixing centers (B): 140 mm

Flow rate: 1200 m³/h

Power: 160 W

Power supply: 12 V
