210 mm ultra-slim universal fan – 730 m³/h – Xtem Motorsport

Optimize the cooling of your thermal systems even in compact configurations thanks to this 210 mm ultra-slim universal fan. With an air flow of 730 m³ per hour, it offers an effective solution for increasing ventilation through an engine radiator, intercooler, oil cooler, or any other heat exchanger, even when space is limited.

Its ultra-slim design allows it to be easily integrated into tight or cluttered engine bay areas, making it ideal for modified engine builds, custom installations, or off-road vehicles requiring optimized thermal management.

🔥 Highlights

Ultra-slim design – perfectly suited for restricted spaces

210 mm diameter

Air flow up to 730 m³/h – to effectively improve air flow in cooling circuits

Universal adaptation – mounts on radiators, intercoolers, oil coolers, etc.

Robust equipment designed for mechanical & off-road use

🔁 Reversible operation – Suction or blowing

This ultra-slim fan can be used in suction mode or blowing mode, depending on your setup and the desired air flow direction.

To switch from one mode to the other, simply reverse the wire polarity, without loss of performance.

Suction mode :
Wire blue = + / Wire black = –

Blowing mode :
Wire blue = – / Wire black = +

This allows for highly flexible installation, whether the fan is positioned in front of or behind the radiator.

⚙️ Specifications

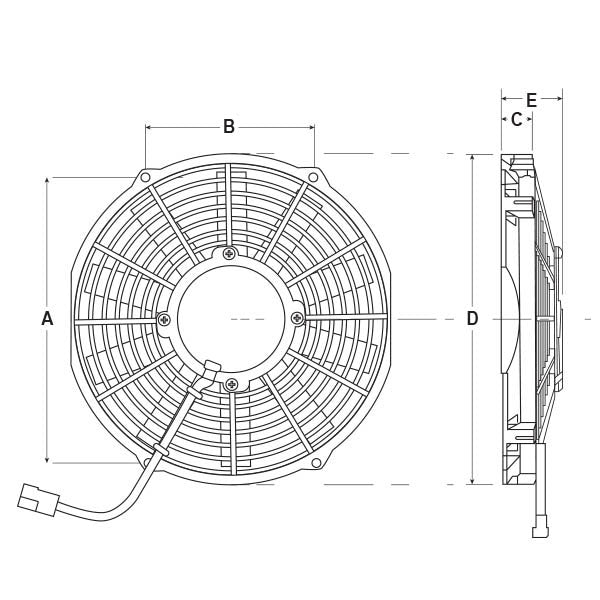

Overall diameter (D) : 210 mm

Blade diameter : 190 mm

Blade housing thickness (C) : 35 mm

Max thickness (E) : 68 mm

Mounting centers (A) : 150 mm

Mounting centers (B) : 150 mm

Flow rate : 730 m³/h

Power : 80 W

Power supply : 12 V
