190 mm ultra-slim universal fan – 620 m³/h – Xtem Motorsport

Optimize the cooling of your thermal systems even in compact configurations thanks to this 190 mm ultra-slim universal fan. With an air flow of 620 m³ per hour, it offers an effective solution for boosting ventilation through an engine radiator, intercooler, oil cooler, or any other heat exchanger when space is limited.

Its ultra-slim design is ideal when the space available between the radiator and other components is reduced, particularly in modified engine setups, specific builds, or off-road vehicles requiring a neat integration of the cooling system.

🔥 Key Features

Ultra-slim design – perfectly suited for tight spaces

190 mm diameter

Air flow up to 620 m³/h – effectively improves air flow in cooling circuits

Universal adaptation – mounts on radiators, intercoolers, oil coolers, etc.

Robust material designed for mechanical & off-road use

🔁 Reversible operation – Pulling or pushing

This ultra-slim fan can be used in puller or pusher mode, depending on your installation and the desired direction of air circulation.

To switch from one mode to the other, simply reverse the wire polarity, with no loss of performance.

Puller mode:
Blue wire = + / Black wire = –

Pusher mode:
Blue wire = – / Black wire = +

This allows for very flexible installation, whether the fan is positioned in front of or behind the radiator.

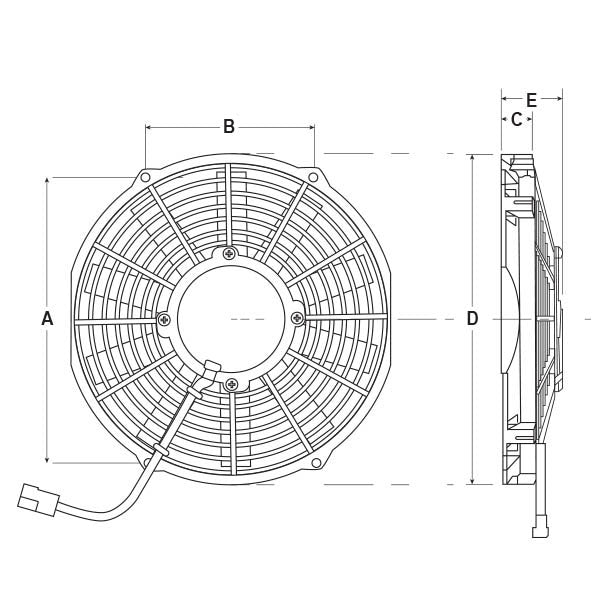

⚙️ Specifications

Overall diameter (D): 190 mm

Blade diameter: 165 mm

Blade housing thickness (C): 35 mm

Max thickness (E): 60 mm

Mounting centers (A): 135 mm

Mounting centers (B): 135 mm

Flow rate: 620 m³/h

Power: 80 W

Power supply: 12 V
