140 mm ultra-slim universal fan – 500 m³/h – Xtem Motorsport

Optimize the cooling of your thermal systems even in the most confined spaces with this ultra-slim 140 mm universal fan. With an airflow of 500 m³ per hour, it offers an effective solution for improving ventilation through an engine radiator, intercooler, oil cooler, or any other heat exchanger in compact configurations.

Its ultra-slim design is ideal when the space between the radiator and other components is limited, such as in modified engine builds, specific conversions, or off-road vehicles with narrow engine bays.

🔥 Key features

Ultra-slim design – perfectly suited for tight spaces

140 mm diameter

Airflow up to 500 m³/h – to improve airflow in the most cramped circuits

Universal adaptation – mounts on radiators, intercoolers, oil coolers, etc.

Robust equipment designed for mechanical & off-road use

🔁 Reversible operation – Puller or pusher

This ultra-slim fan can be used in puller or pusher mode, depending on your installation and the desired direction of airflow.

To change modes, simply reverse the wire polarity, without any loss of performance.

Puller mode:
Blue wire = + / Black wire = –

Pusher mode:
Blue wire = – / Black wire = +

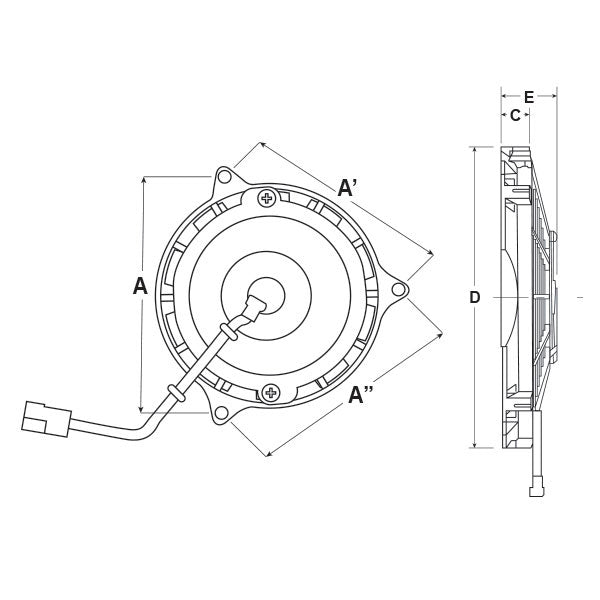

⚙️ Specifications

Overall diameter (D): 140mm

Blade diameter: 125mm

Fan housing thickness (C): 55mm

Max thickness (E): 68mm

Mounting centers (A): 135mm

Mounting centers (A'): 155mm

Mounting centers (A''): 110mm

Flow rate: 500 m3/H

Power: 80W

Motor: 12V
