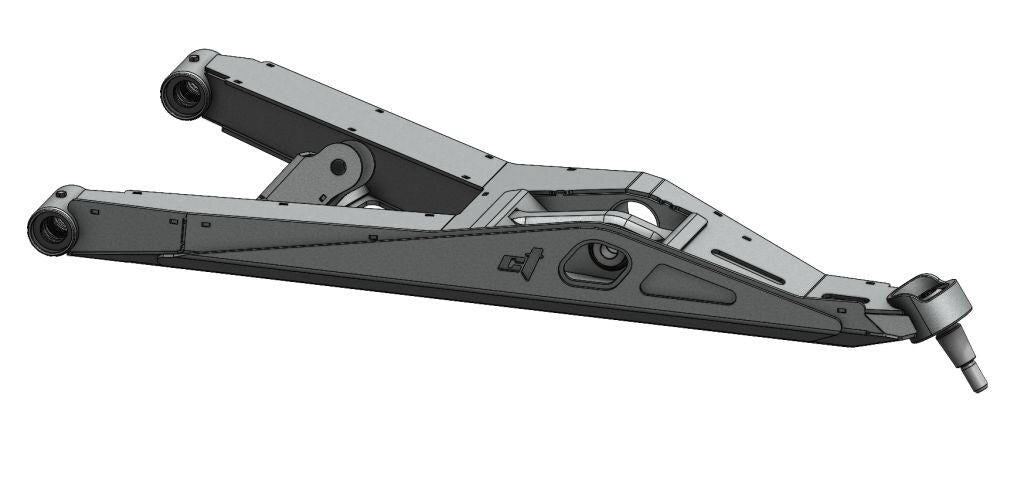

High-clearance front lower A-arms – Polaris RZR Pro R – CT Race Worx

The CT Race Worx Boxed High Clearance lower front A-arms are designed to completely transform the strength and clearance capabilities of your Polaris Pro R.

➡ They correct the main limitations of the stock arms:
✔ lack of ground clearance
✔ fragile ball joints
✔ insufficient strength for extreme use

➡ Result: suspension ready for the harshest terrain.

💪 Ultra-reinforced G50 steel construction

Manufactured from a blend of 0.115" and 0.135" Grade 50 steel, these arms offer:

✔ exceptional rigidity
✔ extreme impact resistance
✔ maximum longevity

➡ 13" I-beam style internal structure to minimize any deformation

⛰️ High Clearance design with anti-obstacle ramp

• Front face angled at 45°
• Ultra-rigid closed "boxed" design
• Significant increase in ground clearance

➡ Allows you to slide over rocks instead of getting stuck

🔩 OEM ball joint deletion (major advantage)

✔ Replacement of ball joints with 7/8" FK uniballs (WSSX14T)
✔ Reinforced 4130 chromoly cup mount
✔ H900 treated 17-4 stainless steel pivot pin

➡ Reliability and strength far superior to the stock system

⚙️ Optimized suspension design

✔ Geometry preserved for perfect compatibility
✔ Integrated steering stops
✔ Proper CV axle angles maintained

➡ Improves precision and protects the drivetrain

🚀 Benefits

✔ Increased ground clearance
✔ Extreme durability
✔ More precise steering
✔ Reliability under intensive use
✔ Ideal for rock crawling & desert

➡ One of the most effective upgrades for the front end.

⚙️ Technical Specifications

• High-strength Grade 50 steel
• Boxed + I-beam internal reinforcement construction
• FK uniballs (7/8")
• 4130 chromoly cups
• Treated 17-4 stainless pivot pin
• 45° anti-obstacle front face


📦 Kit contents

✔ Pair of black lower front A-arms
✔ Uniballs installed
✔ Stainless steel spacers
✔ Ready to install

🚗 Compatibility

✔ Polaris RZR Pro R
✔ 2 and 4-seater versions
