Rear hydraulic bump stop kit with mounts – Nissan Patrol – Dobinsons Suspension

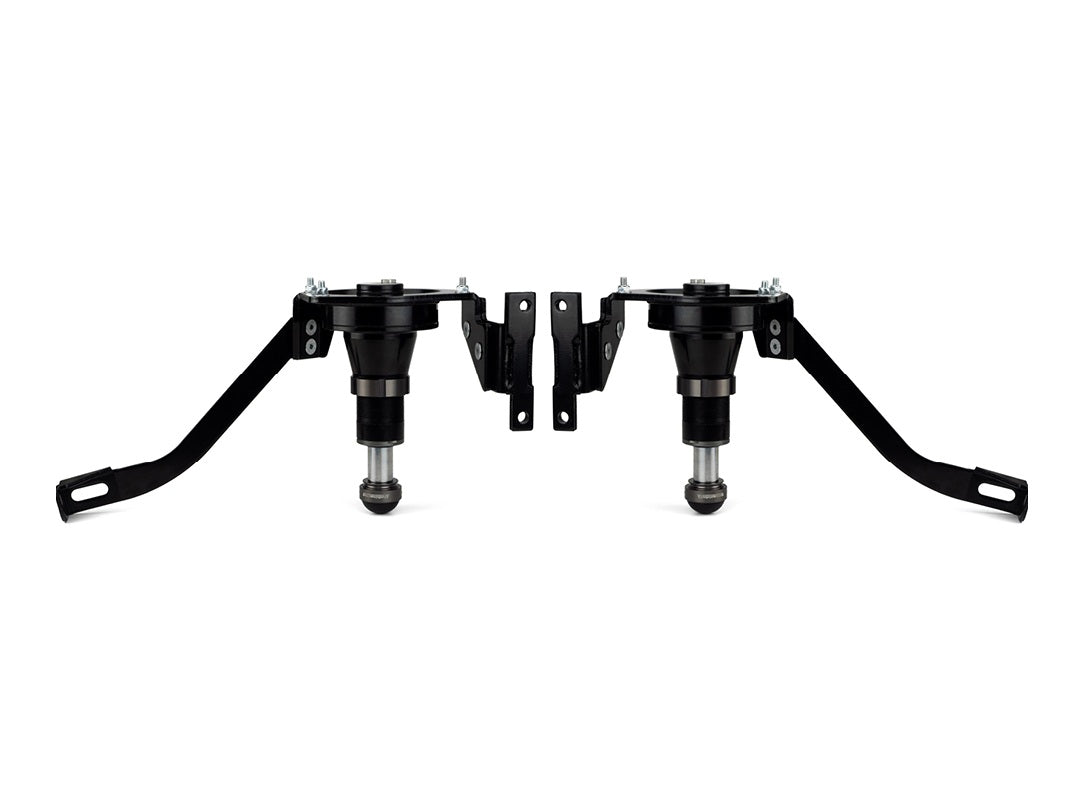

This Dobinsons rear hydraulic bump stop kit with bolt-on mounts is a major rear suspension upgrade for Nissan Patrol Y60 and Y61, designed to durably reinforce the original coil spring mount while integrating true high-performance hydraulic bump stops.

On prepared Patrols (lift kits, large tires, intensive off-road use), the original bump stops and their mounts quickly reach their limits: harsh bottoming out, cup deformation, and structural chassis fatigue.
This kit transforms the high-stress area into a reinforced, secure, and high-performance assembly, capable of absorbing impacts in a progressive and controlled manner.

Structural reinforcement of the original spring mount

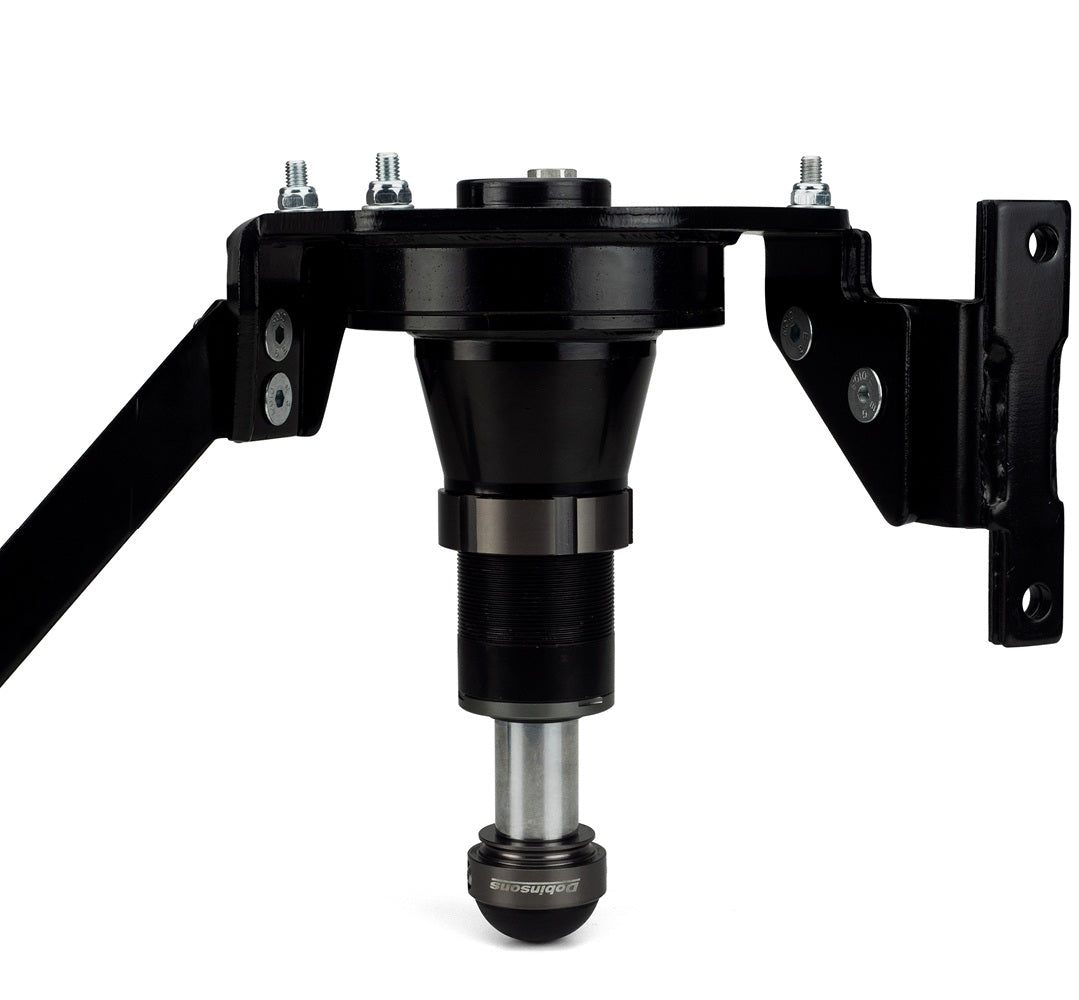

The bolt-on mount is specifically designed to:

• reinforce the original spring cup,
• distribute mechanical loads over a larger surface area,
• eliminate risks of cracks and deformation,
• create a solid anchor point for the hydraulic bump stop.

It fits directly onto the chassis and becomes a durable structural element, perfectly suited to the rigors of serious off-roading.

🛢️ Integrated hydraulic bump stop – Progressive absorption

Unlike standard mechanical bump stops, the hydraulic bump stop:

• progressively slows down the suspension at the end of its travel,
• eliminates harsh shocks,
• reduces uncontrolled rebounding,
• protects shock absorbers, arms, and anchor points,
• improves stability and comfort on rough terrain,
• 56 mm stroke length

This technology is widely used in competition and high-level builds.

📏 Adjustable for lift – from 3″ to 6″

The kit is designed to fit Patrols lifted between 3 inches and 6 inches.

The bump stop positioning is adjustable to fully utilize suspension travel without premature bottoming out or loss of useful stroke.

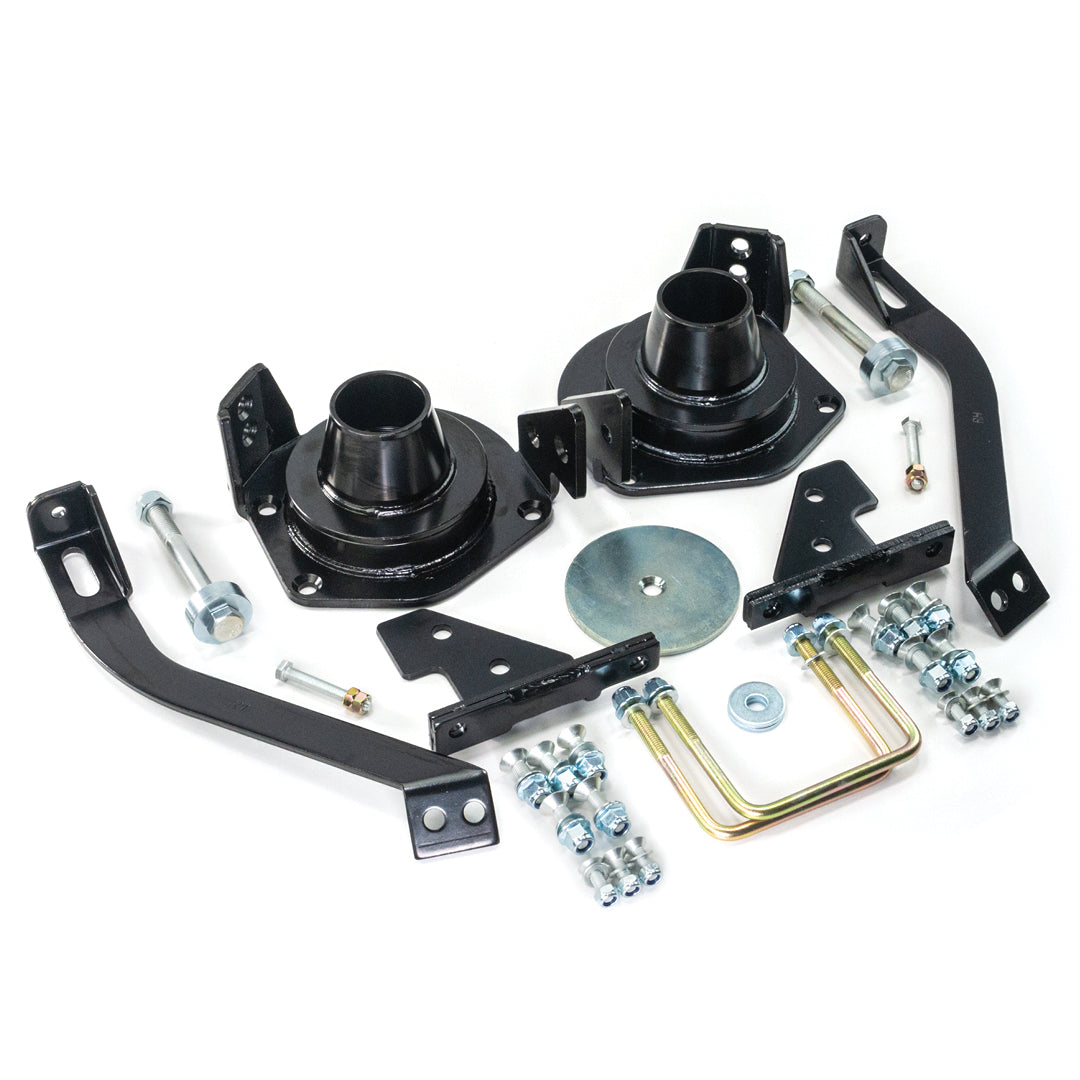

🔩 Kit contents

• Reinforced bolt-on mount x 2
• High-performance hydraulic bump stop x 2


Compatibility

✔ Nissan Patrol GR Y60
✔ Nissan Patrol GR Y61
✔ Vehicles lifted between 3″ and 6″

Transform your Nissan Patrol into an expedition beast by opting for our 3-way adjustable Dobinsons shock absorbers.
