DRT Internal Bypass Technology – Race Performance

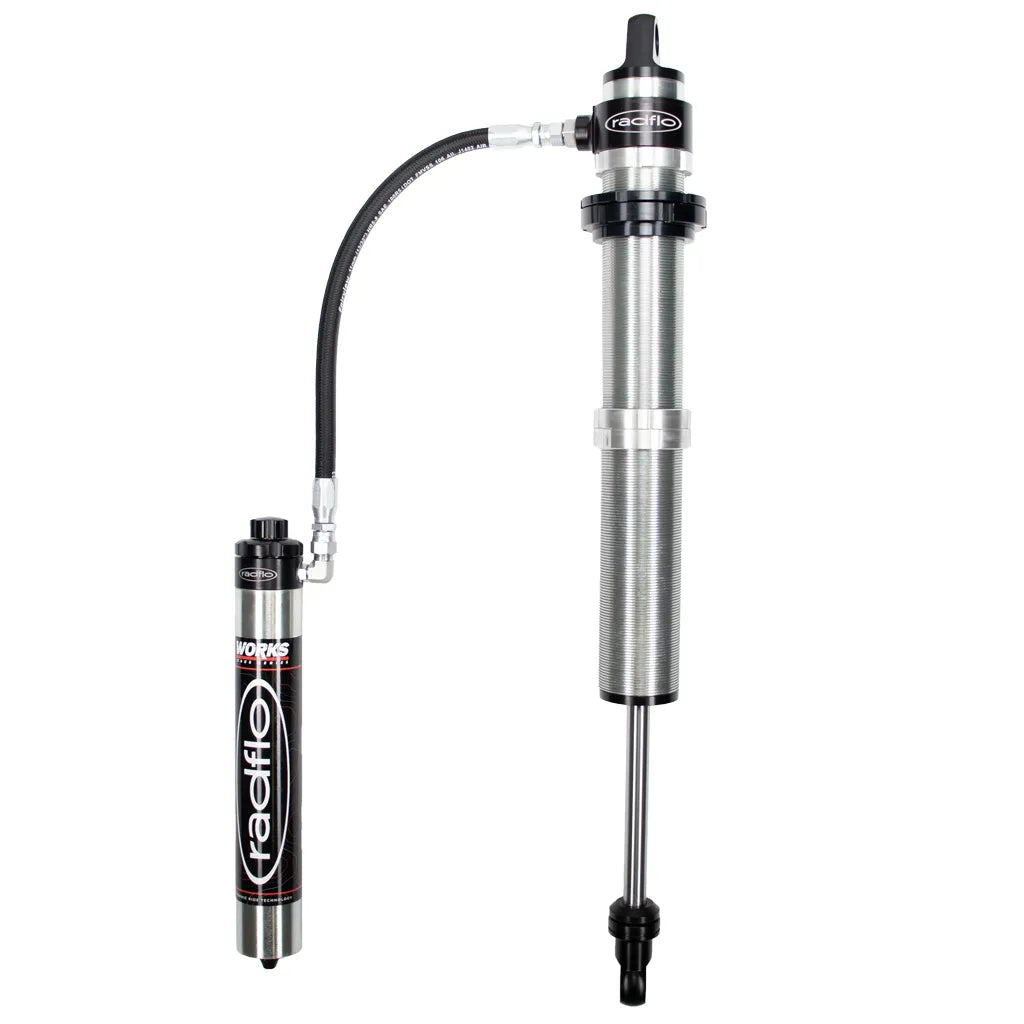

The Radflo Works DRT Series 3.0" Internal Bypass Coilovers feature exclusive Dynamic Ride Technology (DRT).

These shock absorbers combine:

✔ Velocity-sensitive damping
✔ Position-sensitive damping
✔ External bypass-style performance
✔ Progressive comfort + maximum control

Result:
A vehicle that floats over small irregularities while maintaining a "bottomless" feel at high speeds in rough terrain.

Ideal setup with our Eibach springs.

Available travels

• 12"
• 14"
• 16"

⚙️ Available versions

🔹 Compression Adjuster

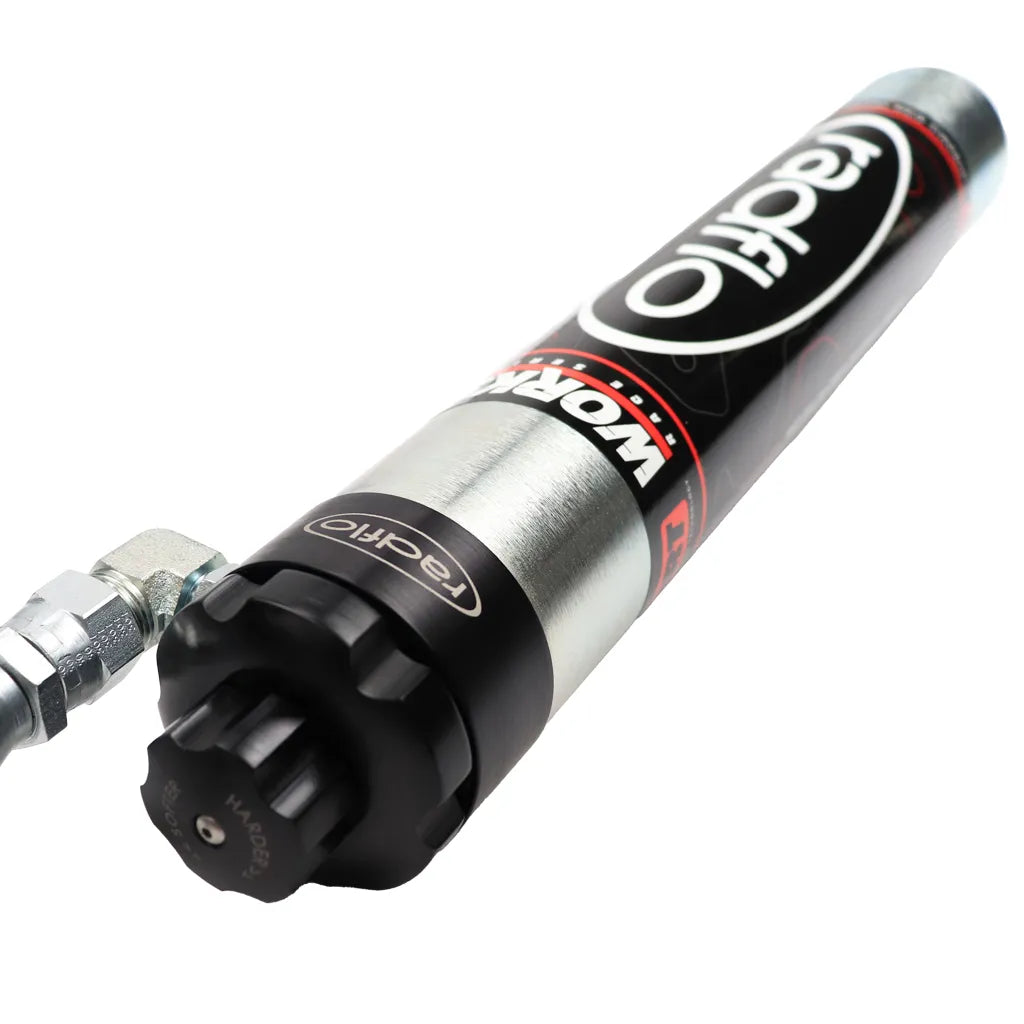

🔹 Hi/Low Speed Compression Adjuster

How DRT technology works

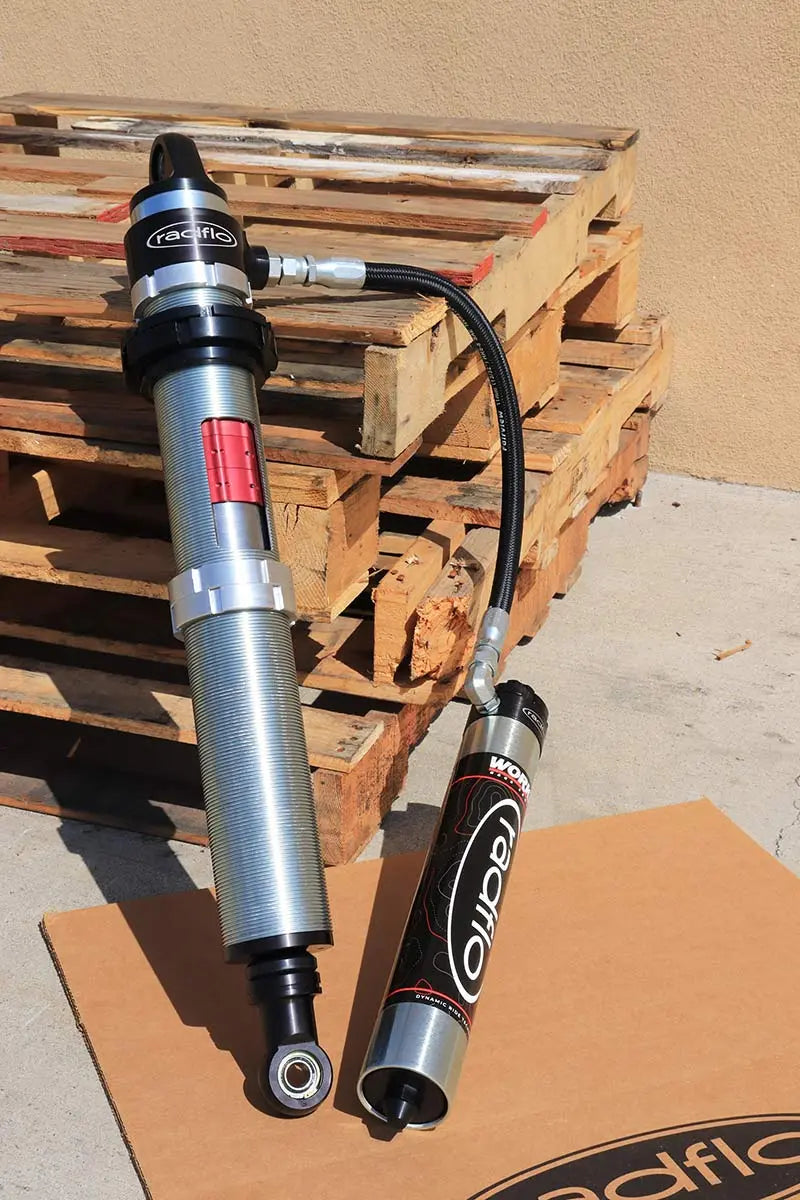

Unlike a conventional shock, the DRT integrates several internal hydraulic zones.

COMPRESSION

1️⃣ RIDE ZONE

Central zone around ride height.

• Internal bypass active via DRT valves
• High oil flow

• Maximum comfort over small irregularities
• Reduced chop & chatter

Allows the wheels to stay in contact with the ground to maximize traction and control.

2️⃣ BUILD ZONE

When the piston goes beyond the comfort zone:

• Damping force increases progressively
• Automatic adaptation to the situation
• Increased control on whoops, bumps, and rocks

From 1 to 8 DRT valves strategically positioned within the travel.
Compression and rebound are independently adjustable.

3️⃣ BUMP ZONE

At full compression:

• No more bypass possible
• All oil passes through the main piston
• Maximum damping force

Prevents violent bottoming and ejection at high speeds.

REBOUND

4️⃣ CATCH ZONE

Hydraulic catch zone:

• Prevents the vehicle from "kicking"
• Controls high forces after full compression
• Improves stability at high speeds

5️⃣ REBOUND RIDE ZONE

• Progressive reduction of rebound damping
• Better control during cornering, braking, and acceleration
• Reduction of "packing" phenomenon
• Improves terrain tracking

6️⃣ TOP OUT ZONE

Associated with the Hydraulic Droop Stop (HDS):

• Slows down the end of rebound
• Reduces noise and shock
• Improves longevity

⚠️ Limiting straps remain recommended depending on the application.

🔧 Available adjustments

✔ Customized main valving
✔ Multi-stage compression
✔ Adjustable rebound
✔ Tunable DRT internal bypass
✔ Hi/Low speed compression version available

Compatible with the RST DRT Tuning Kit for tuners and race teams.

💪 Construction & reliability

• High-capacity 3.0" body
• Remote reservoir
• Freeflo Racing piston
• Triple-lip seal system
• Precision-machined components
• Designed for extreme competition

Constant performance, no fading, even under prolonged intense loads.
