2.5" Coil-Over Remote Reservoir - Radflo Suspension Technology

🏁 Peak performance with optimized thermal management

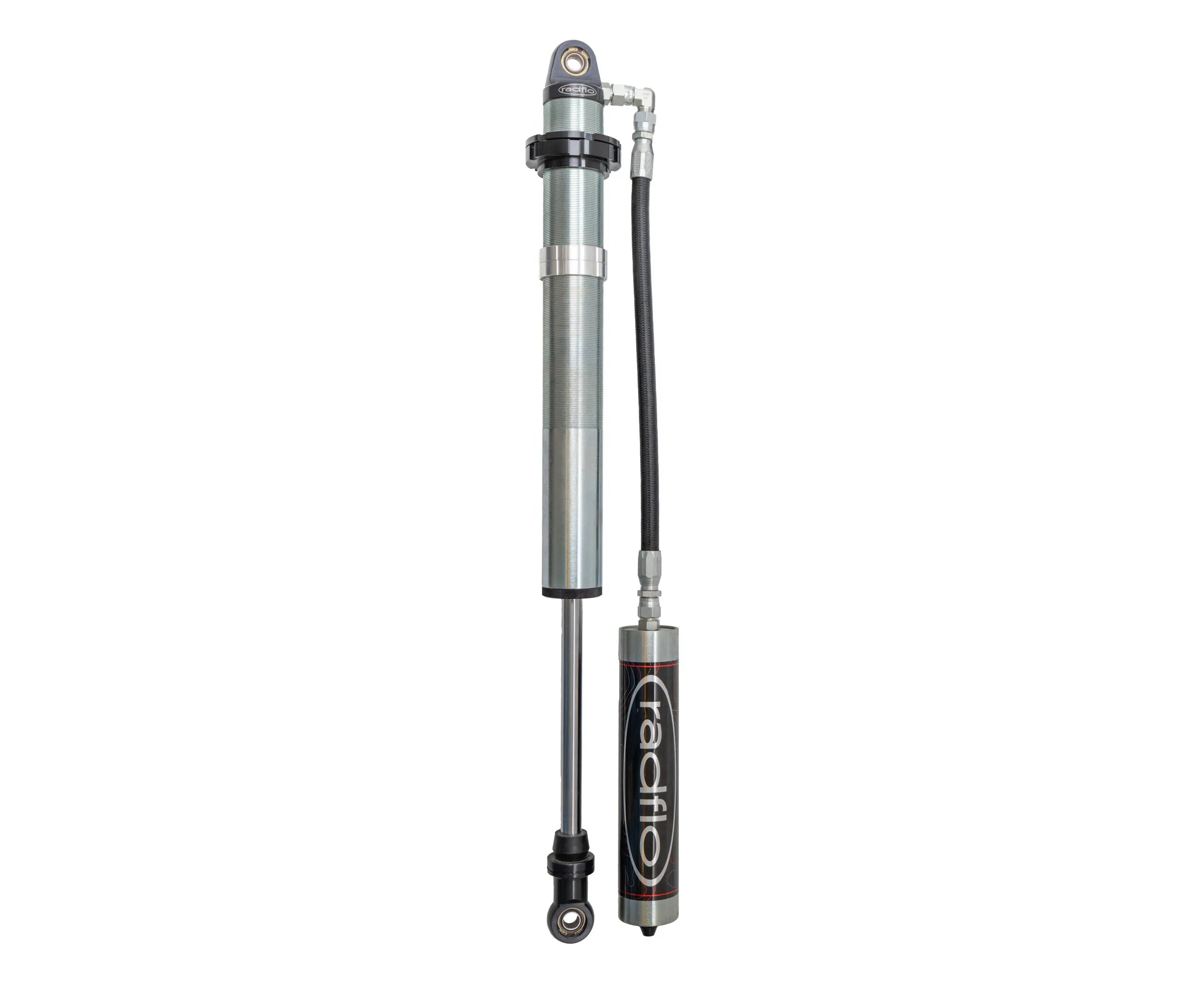

The Radflo 2.5" Off-Road Coil-Overs with remote reservoir offer a superior level of control and consistency in extreme conditions.

Thanks to the remote reservoir, the oil and nitrogen volume is increased, which allows for:

✔ Better heat dissipation
✔ Consistent performance under heavy load
✔ Reduction in fading phenomenon
✔ More stable response in intensive use

With a reinforced 2.5-inch diameter body, these shock absorbers provide superior damping, increased responsiveness, and exceptional handling even in the most difficult conditions.

⚙️ Radflo Design

🔵 2.5" Performance Body

• Reinforced body diameter for increased damping capacity
• Optimized internal volume for better thermal management
• Robust construction suitable for heavy loads

📏 Available travels

• 10"
• 12"
• 14"
• 16"

⚙️ Precise adjustments & maximum flexibility

Once installed, Radflo coil-overs allow:

✔ Rapid ride height adjustment
✔ Precise preload setting
✔ Travel adaptation

Spring adjustments can be performed without removing the vehicle's components.

🔧 Compact integrated design

• Integrated spring + shock absorber system
• Reduced footprint
• Ideal for tight fitments
• Compatible with a wide range of high-performance springs

Ideal setup with our Eibach springs.

🧠 Radflo Technology

🔵 Velocity-sensitive valving

Damping automatically adapts to the terrain to improve:

• Control
• Stability
• Comfort

🔵 Exclusive Freeflo racing piston

• Adaptive damping technology
• Automatic adjustment to surface conditions

💪 Ultra-robust design

• Nitro Steel piston rod available in 7/8" (22mm)
• High-performance bronze rod guide
• Multi-directional triple-lip seal system
• Endurance-inspired design for constant performance

Components are precision-machined to offer reliability and consistency in extreme conditions.

🔥 Remote reservoir advantage

✔ Increased oil volume
✔ Better managed temperature
✔ Consistent performance in long sessions
✔ Ideal for desert, Ultra4, intensive use

🔄 Maintenance & longevity

✔ Fully rebuildable
✔ Individually replaceable components
✔ Interchangeable shims to fine-tune damping

Designed to ensure a long service life and maintain consistent performance.

For the most demanding drivers, we offer a free custom valving service; do not hesitate to contact us.
