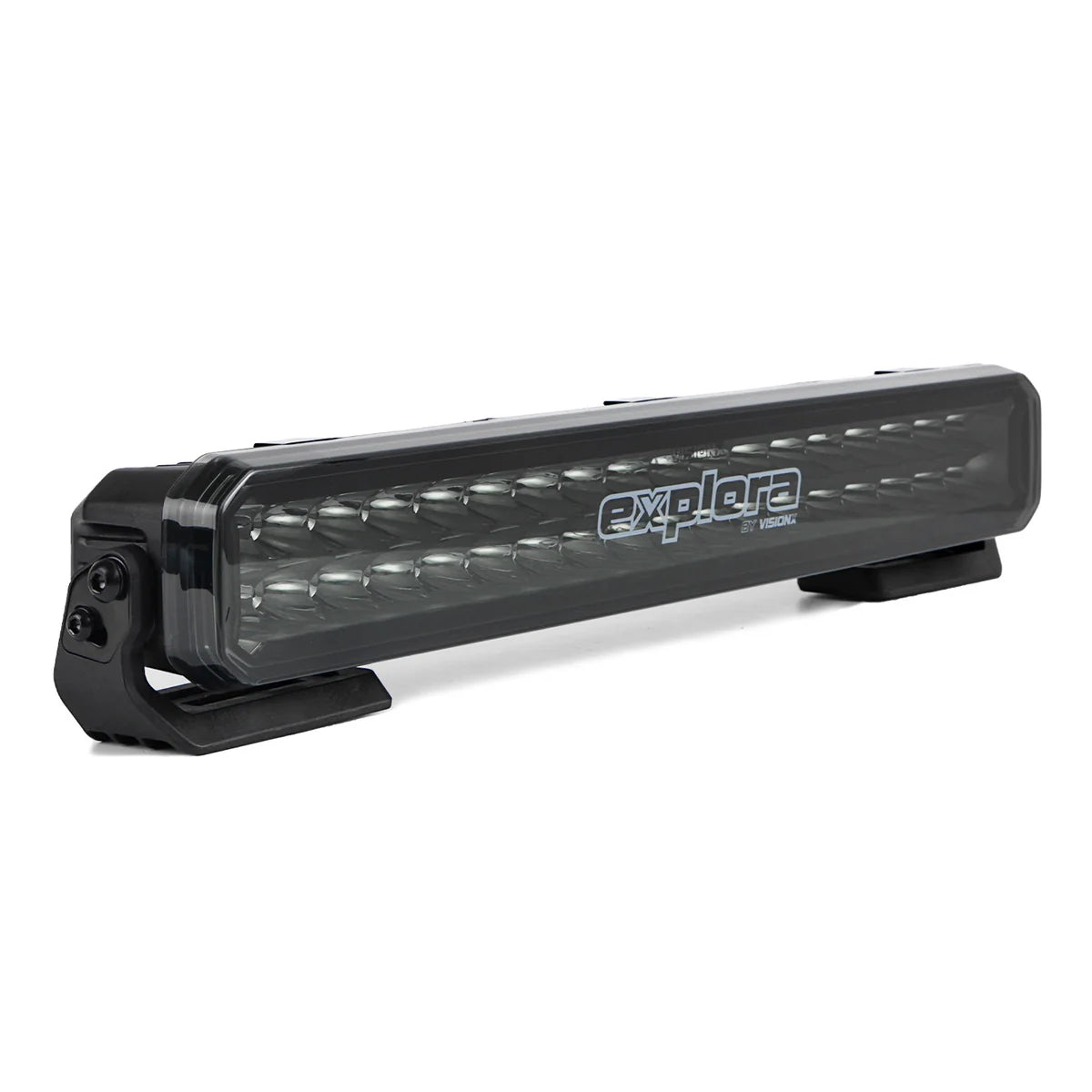

Explora Series 20" LED Light Bar - VISION X

The Explora Series lights were designed to offer modern style on a fully customizable platform, giving everyday drivers unprecedented versatility at an affordable price. Switchback dual-color DRLs, multi-color lens options, and colored trim rings offer limitless customization, perfectly tailored to your vehicle. Add to that impressive lighting performance and an internal relay system, and it becomes clear that Explora represents a whole new generation.

The Explora Series LED light bars are available in 10, 20, and 30-inch lengths, in single or double row profiles. All bars feature a next-generation circuit with a 2-position DRL that can operate in white , amber , or switchback mode , where the white DRL changes to amber and flashes in sync with your factory turn signals. This advanced circuit also utilizes an internal MOSFET , eliminating the need for external relays and greatly simplifying installation, with or without our plug-and-play wiring harnesses.

Interchangeable clip-on lenses and silicone end rings are available for all bar sizes, allowing for greater customization than ever before. Lenses are available in yellow, clear, smoke, or blackout , and end rings come in red, orange, yellow, green, blue, and pink .

Features :

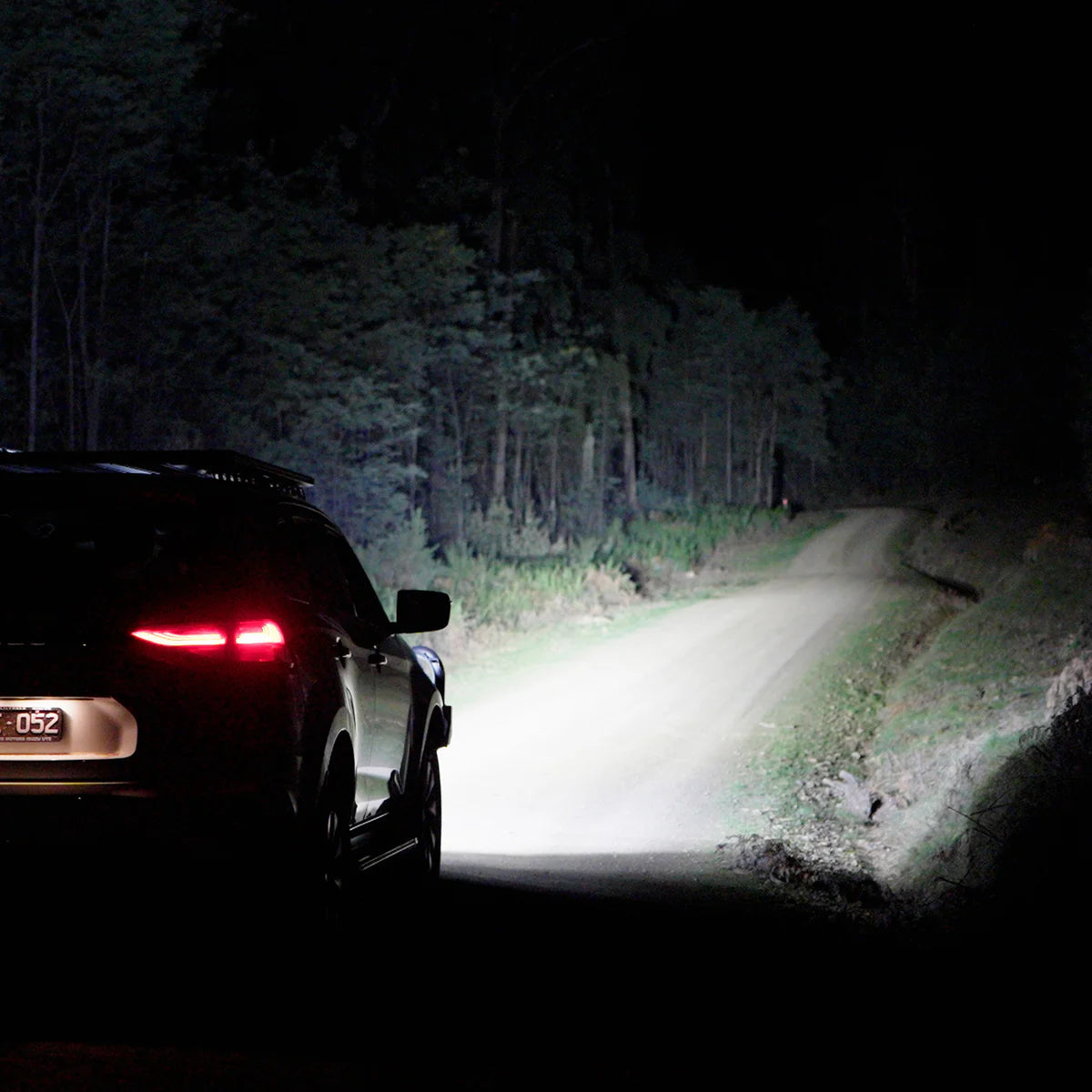

LED X-Drive: 12,240 lumens

Our ultra-reflective honeycomb optics are combined with eight high-power LEDs to produce a high-performance driving beam.

Two-tone DRL

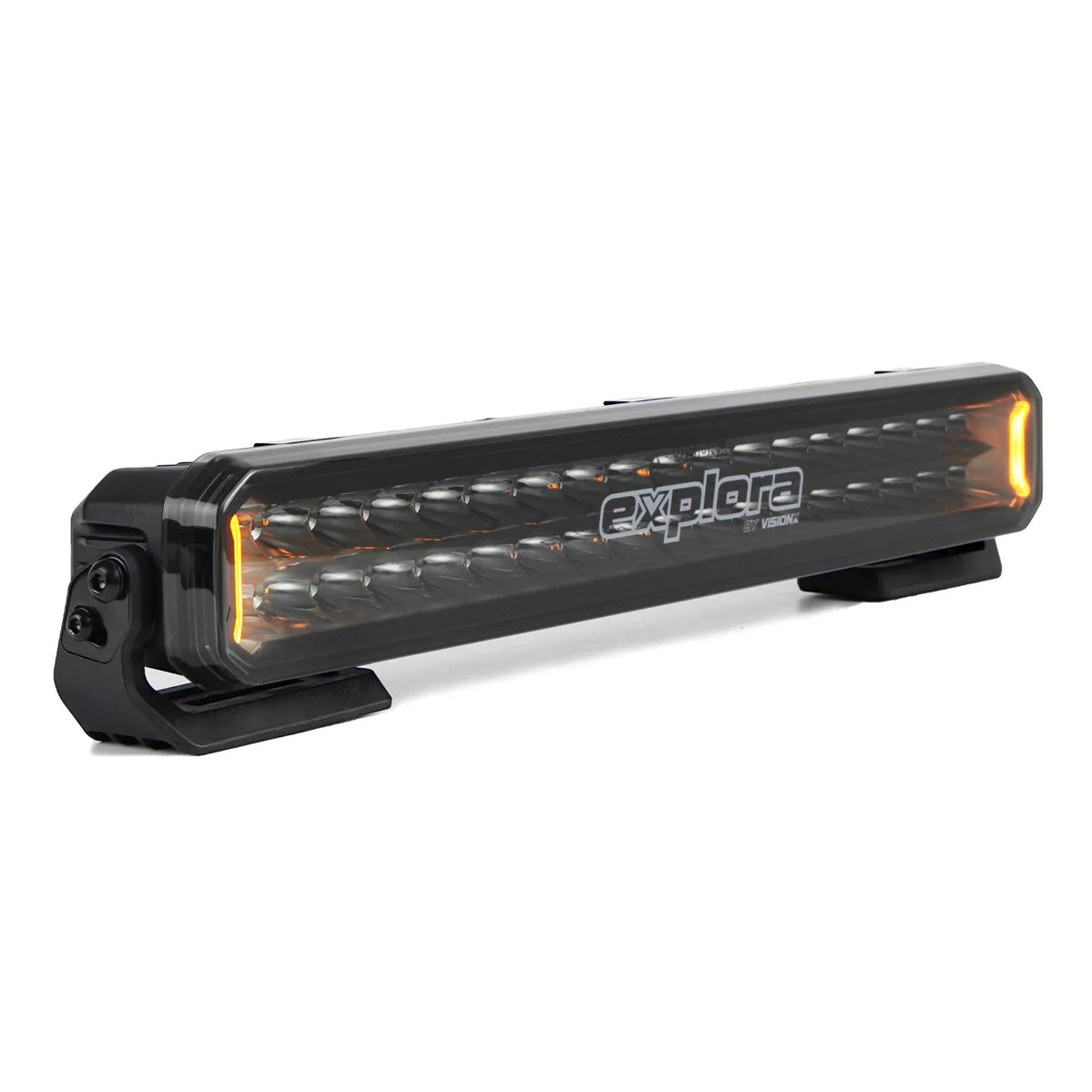

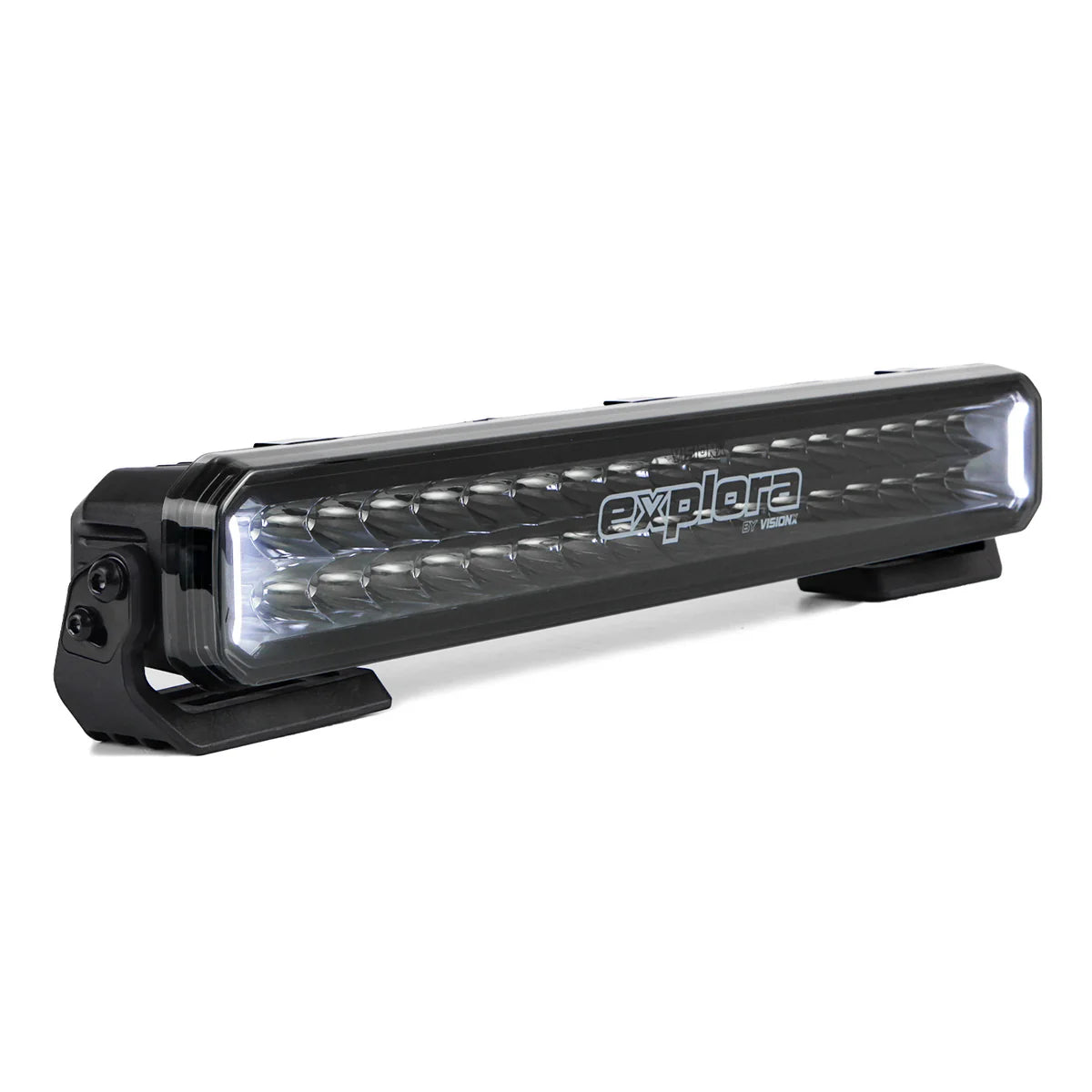

A unique dual contour DRL that can be switched between a crisp white or an amber , to match the vehicle's original position lights.

Switch-back technology

The amber DRL automatically takes priority when the white and amber DRLs are powered simultaneously, and can flash in sync with the turn signals.

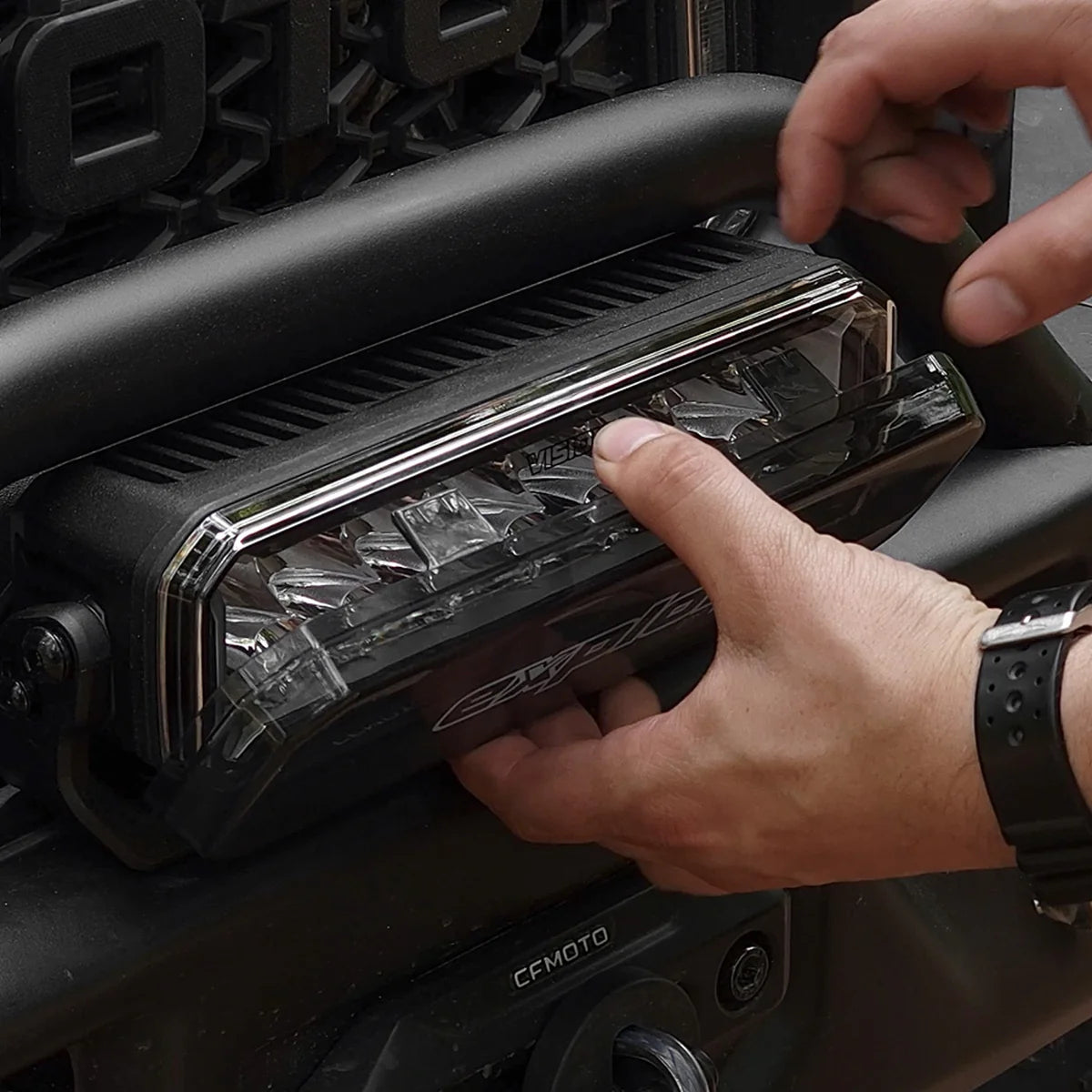

Interchangeable lens system

Each Explora light comes with a smoked lens, which can be replaced with a clear (protective) or yellow selective (ideal for dust) lens.

Internal relay with modular control

No external relay required.

Specifications:

• LED: Cree XTE (5W each)

• Power: 180 W

• Intensity: 15 A

• Raw lumens: 12,240

• Beam range: 638 m

• Beam width: 86 m

• Connector: DT 3-pin

• Color temperature: 6000 K

• Operating voltage: 9–32 V DC

• Dimensions: 530mm long × 80mm deep

• Weight: 2.40 kg

• IP rating: IP68 & IP69K – waterproof against immersion & high pressure

• 5-year warranty
