Air Shock 2.0" – Radflo Suspension Technology

🚙 Maximum performance – Minimum weight

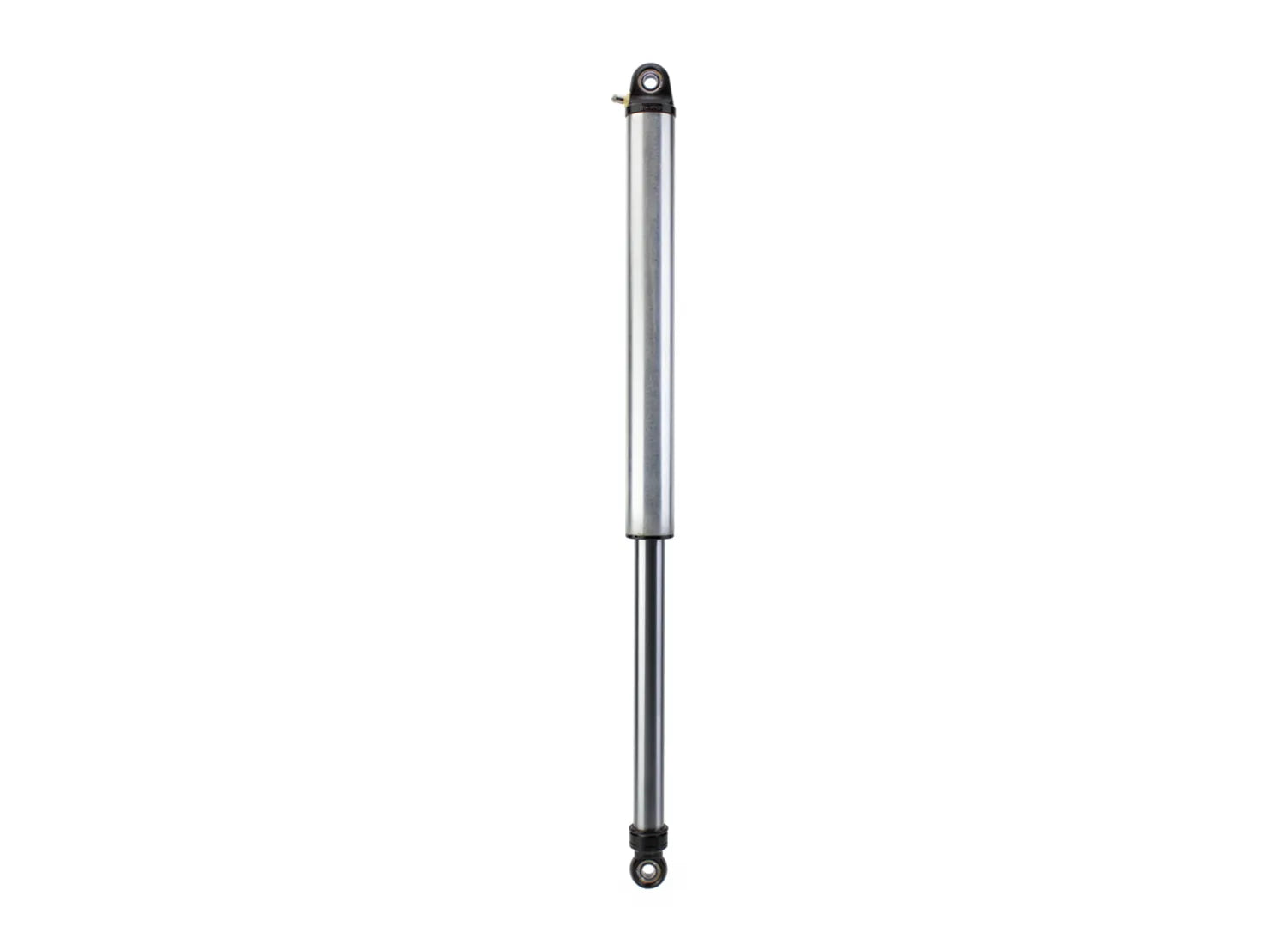

Radflo 2.0" Air Shocks allow you to significantly lighten your suspension without sacrificing control or performance.

Increasingly popular in rock crawling and on lightweight vehicles, air shocks offer a simple, effective, and versatile solution. They support the vehicle's weight while controlling suspension movement.

👉 Spring rate and ride height are easily adjusted via internal nitrogen pressure and oil volume.

⚙️ Simplicity, versatility, and efficiency

✔ Ultra-compact format easy to integrate
✔ Economical alternative to coilovers
✔ Can be used alone (support + damping)
✔ Can serve as a secondary spring in advanced setups
✔ Reduced cost for high performance

🪶 Lightweight & robust design

• Lightweight design reducing unsprung mass
• Oversized alloy steel shaft for exceptional strength
• Optimized fluid displacement to reduce overall weight
• Simple, reliable, and durable construction

🛡️ Sealing & resistance

• Multi-directional triple-lip sealing system
• Optimal gas & oil retention
• Protection against contamination
• High-end finish

The 2.0" body is manufactured from mirror-polished SSID steel, with a clear cadmium finish offering maximum corrosion resistance.

🏁 Radflo technology – Intelligent control

🔵 Velocity-sensitive valving

Damping automatically adapts to the terrain to improve:

• Control
• Stability
• Comfort

🔵 Radflo exclusive Freeflo racing piston

• Adaptive damping technology
• Automatic adjustment to surface conditions

🔧 Customization & maintenance

✔ Adjustable multi-stage compression
✔ Customizable rebound
✔ Completely dismantlable
✔ Fully serviceable
✔ Interchangeable valve shims to fine-tune handling

Each component is designed to be easily serviced or replaced.
The shocks can be serviced by Radflo or directly by the user.

👉 Designed for a practically unlimited lifespan.

📏 Available travel

• 10"
• 12"
• 14"
• 16"
• 18"
